EZVIZ  |  SKU: EX367  |  Barcode: 6941545630786
New arrival

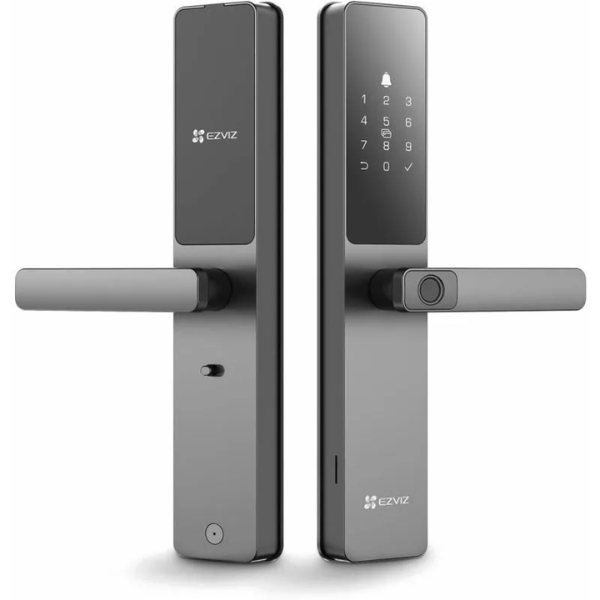

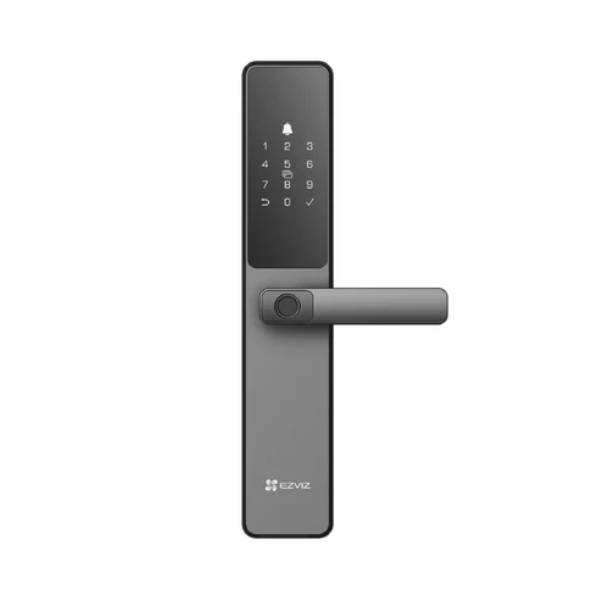

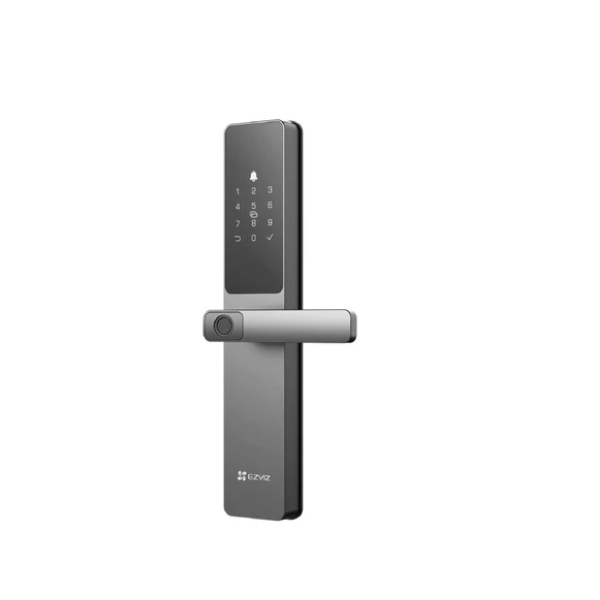

EZVIZ DL05 Smart Fingerprint Lock 6068 – Metallic Grey 4.8 kg

LE 9,17900 EGP
Tax included Shipping calculated at checkout.

Pickup available at DokkanTech

Usually ready in 1 hour

Description

Upgrade your door access with the EZVIZ DL05 Smart Fingerprint Lock (6068). This smart door lock offers multiple unlocking methods, app-based control, and access management for everyday home security.

Key Features

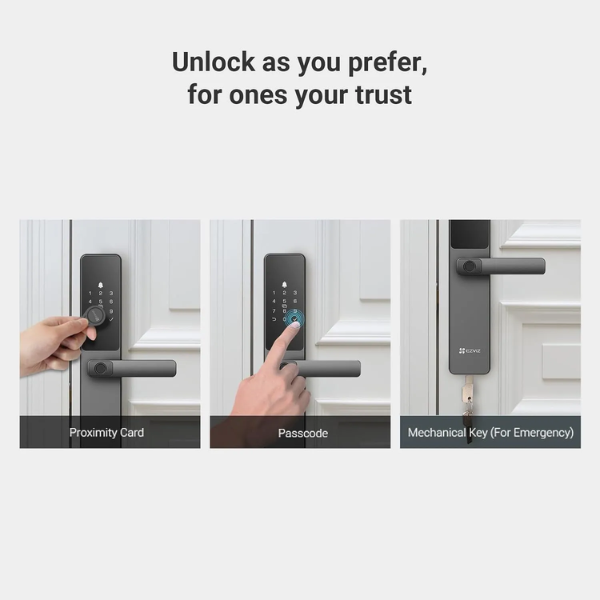

  • Multiple unlocking methods: Fingerprint, passcode, proximity card, mechanical key, Bluetooth key through the EZVIZ app, temporary codes, and remote unlocking
  • Smart app control: Supports remote control, user management, and real-time notifications when connected as supported

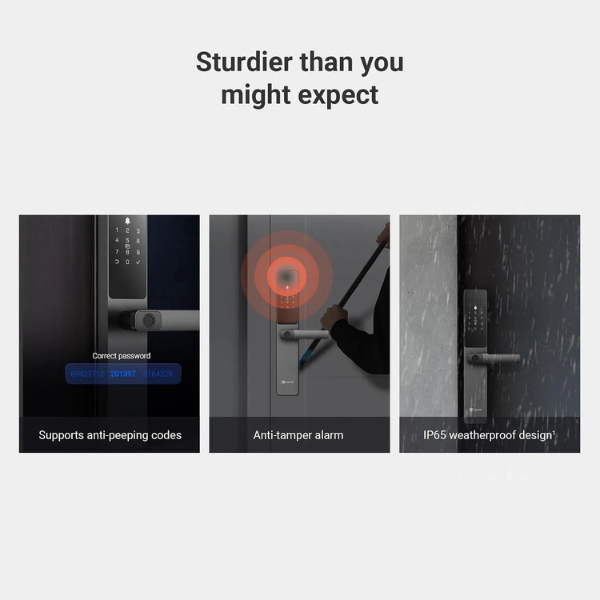

  • Access protection: Anti-peeping passcodes up to 20 digits, an anti-tamper alarm, privacy mode, and child safety lock
  • Wrong-attempt protection: Five failed attempts within five minutes trigger a three-minute lockout
  • Weather-resistant front panel: IP65-rated front panel
  • Emergency power: Type-C emergency charging port
  • Metallic grey finish: Aluminium-alloy panels with a modern, understated appearance

Key Specifications

Specification Details
Brand EZVIZ
Model DL05
Model code provided CS-DL05
Lock body 6068
Colour Metallic Grey
Panel material Aluminium alloy
Panel dimensions 360 × 67 × 27 mm
Unlocking methods Fingerprint, passcode, proximity card, mechanical key, app Bluetooth key, temporary codes, remote unlocking
Capacity Up to 50 users, fingerprints, passcodes, and cards respectively
Connectivity 2.4 GHz Wi-Fi and Bluetooth
Power 8 × 1.5 V AA alkaline batteries
Emergency charging Type-C
Front-panel protection IP65
Supported door thickness 40–120 mm
Operating temperature -25°C to 70°C
Operating humidity 10%–95%
Warranty 30 Day

Compatibility Notes
Check that your door thickness, lock-body cut-out, door opening direction, and existing installation dimensions are compatible with the 6068 lock body before purchase. Remote functions require the supported app and network connection

Limitations
The IP65 rating applies to the front panel, not necessarily the complete lock assembly. Battery life and remote features depend on settings, connectivity, and usage

What's in the Box

  • Front and rear panels
  • Lock body
  • Hole template (for precise drilling)
  • Installation screws and accessories
  • 8 AA alkaline batteries
  • 2 Mechanical emergency keys
  • 2 Proximity cards (smart cards)
  • Square rod (for door handle connection)
  • Rear-panel silicon plug
  • Quick Start Guide and regulatory information
    .
Important Notes:

Weather Resistance: Please note that only the exterior panel of the DL05 lock is weather-resistant.
Camera Compatibility: The DL05 currently supports the following cameras to snap a photo or record a video at a preset viewing angle upon sensor detection: H6c, C6N, CP1, TY1, and TY2. This list may expand as EZVIZ launches more compatible products in the future.
Security Protection: The wrong-attempt lockout protection is supported when unlocking the door via fingerprint, passcodes, or proximity cards.
Privacy Mode: When privacy mode is enabled, the door can only be unlocked by the administrator (using fingerprint, passcode, or proximity card) or anyone using the physical mechanical emergency key.
Bluetooth Battery Life: When connected via Bluetooth with the Wi-Fi mode disabled, the lock can last up to 365 days on fully charged batteries (based on an average usage of 10 openings per day).
Wi-Fi Battery Life: When Wi-Fi mode is enabled, battery life may decrease due to continuous internet activity. Actual battery performance varies depending on network stability and environmental factors.
Network Advice: If your home network is unstable, it is highly recommended to turn off Wi-Fi mode to better optimize the lock's battery usage.
