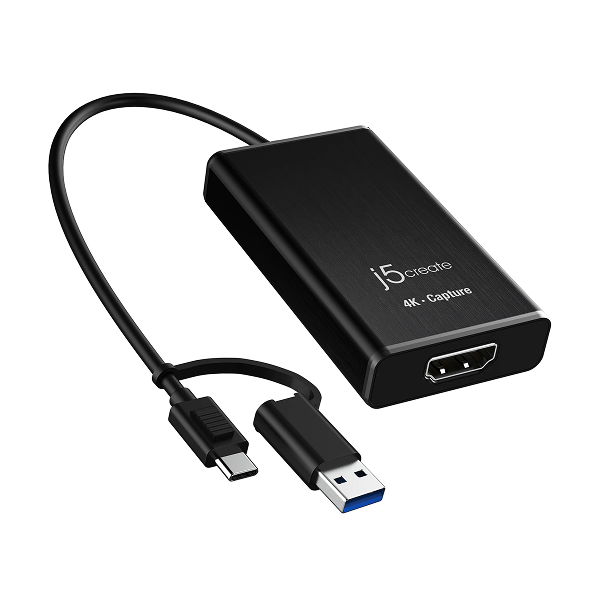

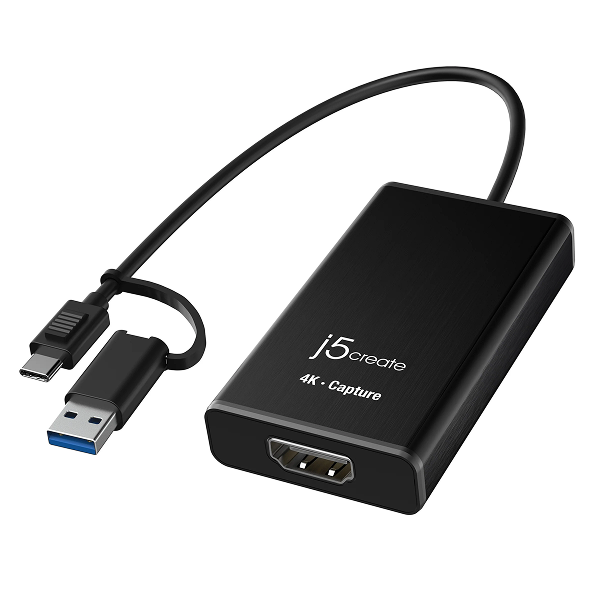

j5create JVA11 4K HDMI Video Capture Adapter for USB-A & USB-C

The j5create JVA11 is a compact 4K HDMI capture adapter that captures video from cameras, gaming consoles, and other HDMI devices to computers with USB-C or USB-A ports. It accepts HDMI input up to 4K at 30Hz and captures at 4K 30fps, 2K 60fps, or 1080p 120fps over USB-C 3.2 Gen 1, making it ideal for live streaming, online teaching, gaming, video conferencing, and content creation. Its UVC/UAC compliance allows simple Plug & Play setup without driver installation

Key Features

• 4K HDMI to USB-C video capture adapter for streaming and recording

• Supports HDMI input up to 4K Ultra HD (3840 × 2160) at 30Hz

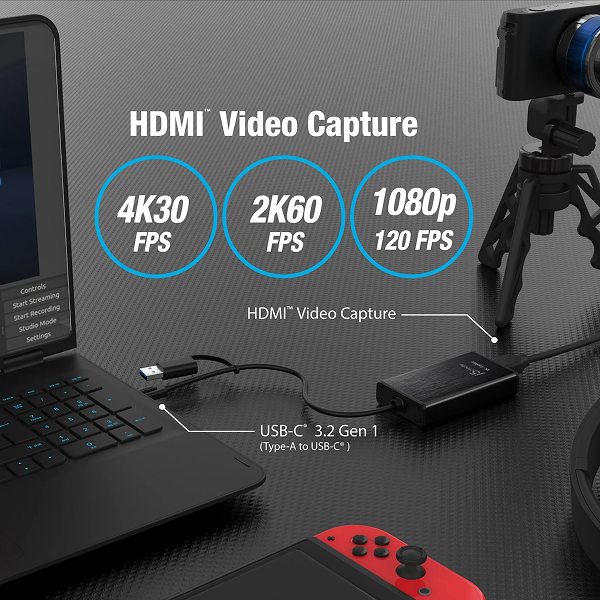

• Capture modes: 4K at 30fps, 2K at 60fps, and 1080p at 120fps

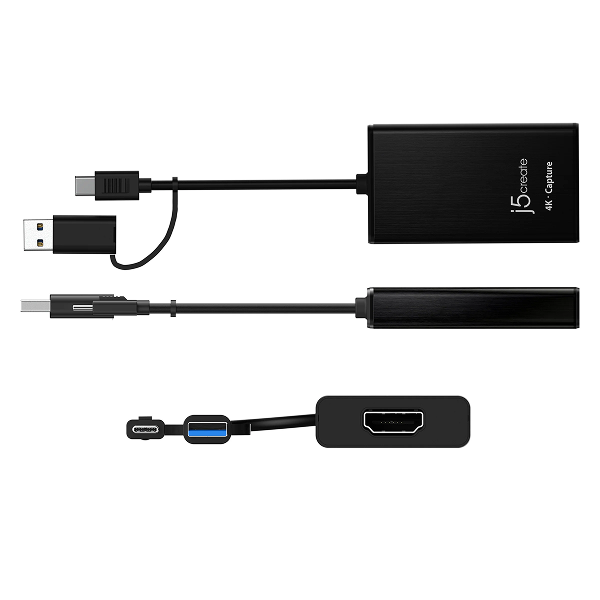

• USB-C 3.2 Gen 1 connection with a USB Type-A adapter on the cable for USB-A computers

• UVC/UAC compliant for driver-free installation

• Ultra-low latency streaming over the USB-C 3.2 Gen 1 connection

• Captures HDMI audio (48 kHz)

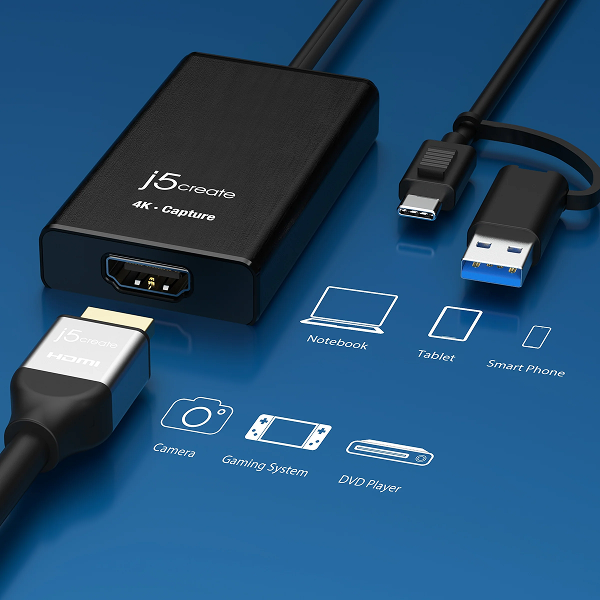

• Compatible with PlayStation 4/5, Xbox Series X/S, Xbox One X/S, and Switch consoles

• Suitable for live streaming, online meetings, education, gaming, and content creation

Key Specifications

Best For

• Live streaming

• Video conferencing

• Online teaching

• Gaming capture

• Content creation

• Recording from HDMI cameras

• Connecting HDMI devices to computers


Compatibility Notes
The j5create JVA11 supports Windows 7 or later, macOS 10.12 or later, Android 8.1 or later, and ChromeOS devices with UVC support, using a USB-C or USB Type-A port (USB 3.2 / 3.0 recommended). Over a USB 2.0 connection, capture is limited to 1280 × 720 at 30fps. For 4K capture, a computer with an Intel Core i7-6700HQ, NVIDIA GTX 960M graphics, and 8 GB RAM or better is recommended. It works with UVC-compatible streaming and recording software

Frequently Asked Questions

What's included in the box?
j5create JVA11 4K HDMI Capture Adapter
Quick Installation Guide

What warranty applies?
Warranty coverage according to the applicable terms and DokkanTech's Warranty Policy.

Does it capture 4K video?
Yes. It captures 4K at 30fps from HDMI input up to 4K at 30Hz, and also supports 2K at 60fps and 1080p at 120fps

Does it work with USB-A and USB-C computers?
Yes. It connects via USB-C, and the cable includes a USB Type-A adapter for USB-A computers

Does it require drivers?
No. It complies with the UVC/UAC standard, allowing Plug & Play operation on supported operating systems

Can I connect a camera or gaming console?
Yes. It captures from HDMI source devices and is compatible with PlayStation 4/5, Xbox Series X/S, Xbox One X/S, and Switch consoles
