j5create JTSA301 Monitor Arm with Dock Support for 17–32 Inch Monitors 3.0 kg

The j5create JTSA301 Ergonomic Monitor Mount with Dock combines a gas spring monitor arm with a built-in 6-in-1 USB-C dock, creating an organized and productive desktop workspace. It supports one 17-inch to 32-inch monitor weighing up to 8 kg (17.6 lbs), while the dock adds 4K 60Hz HDMI, 2 × USB Type-A 10Gbps, 2 × USB-C 10Gbps, and up to 100W Power Delivery pass-through through a single USB-C connection

Key Features

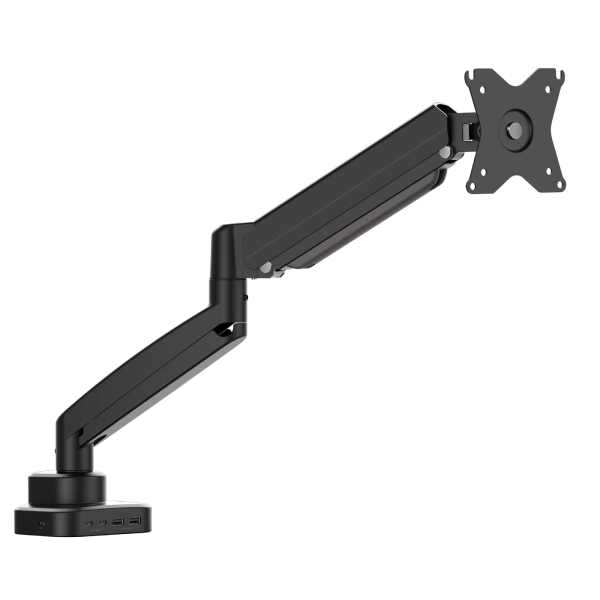

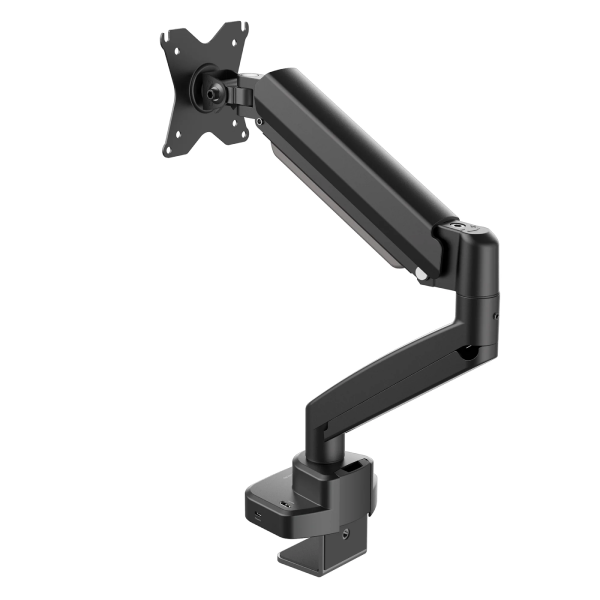

• Ergonomic gas spring monitor arm with a built-in 6-in-1 USB-C dock
• Supports one 17-inch to 32-inch monitor
• Holds monitors up to 8 kg (17.6 lbs)
• Supports VESA 75 × 75 mm and 100 × 100 mm mounting patterns
• 1 × HDMI output up to 4K at 60Hz

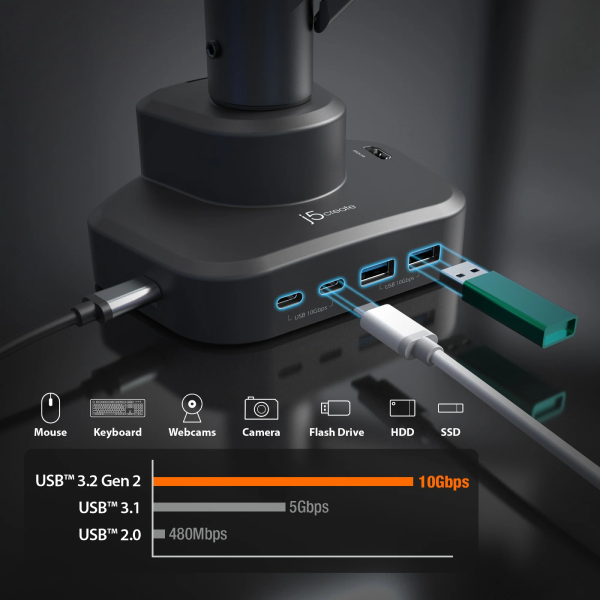

• 2 × USB Type-A 10Gbps ports
• 2 × USB-C 10Gbps data ports

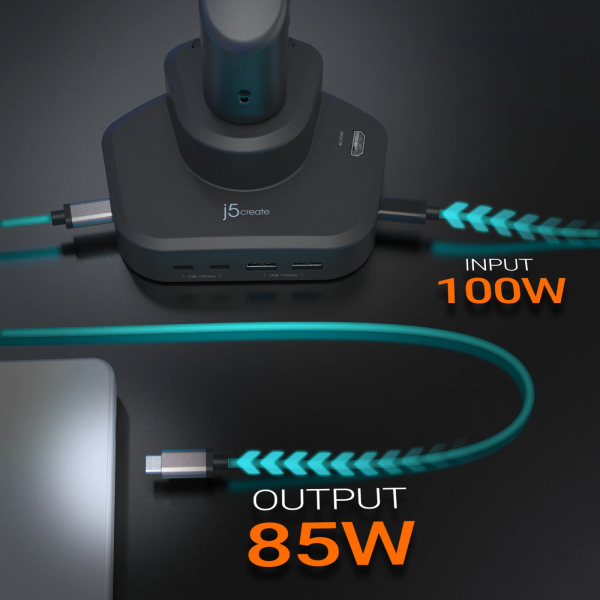

• USB-C Power Delivery pass-through charging: up to 100W input, up to 85W to the laptop
• Includes a 1 m USB-C 10Gbps host cable
• Audio output via HDMI

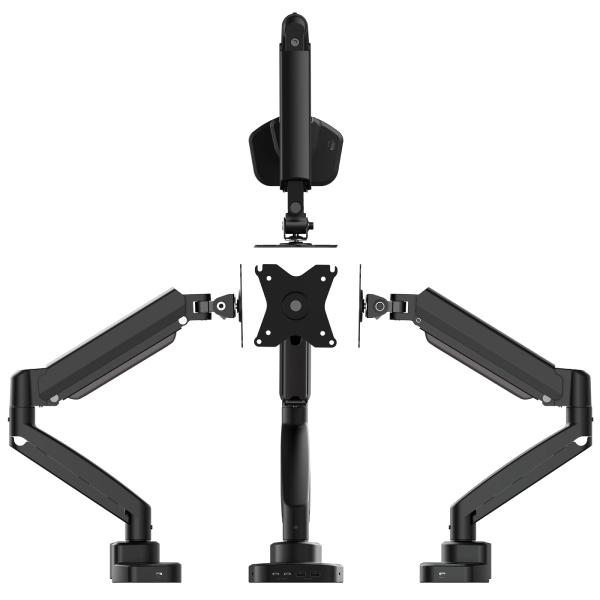

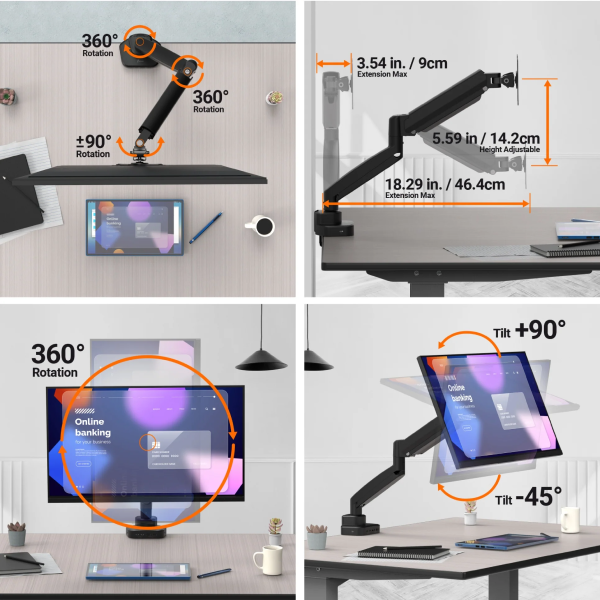

• Screen tilt, screen swivel, arm swivel, and 360° rotation for ergonomic positioning
• Integrated cable management for a cleaner workspace

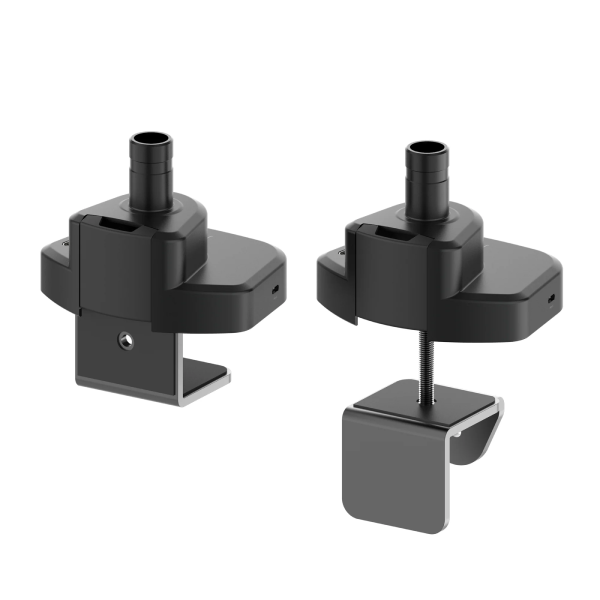

• C-clamp and grommet mounting bases (10–50 mm)

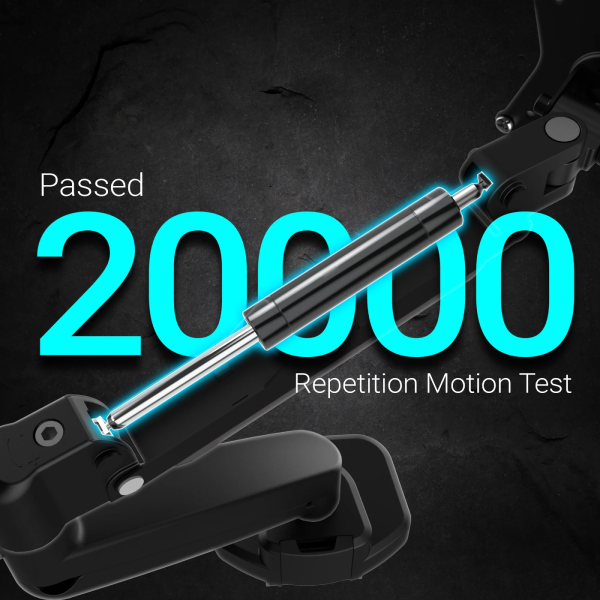

• Made with high-grade aluminum and passed a 20,000-repetition motion test

Key Specifications

Best For

• Professional office workstations
• Home office setups
• Remote work
• Designers and content creators
• Business professionals
• Multi-device desk organization
• Ergonomic workstation upgrades

Compatibility Notes

The j5create JTSA301 supports one 17-inch to 32-inch monitor with VESA 75 × 75 mm or 100 × 100 mm mounting holes, weighing up to 8 kg (17.6 lbs). The built-in dock connects to your computer with the included USB-C 10Gbps host cable and is Windows® and macOS® compatible. DisplayPort™ 1.4 is required on the graphics card or video source to support 4K at 60Hz. USB-C Power Delivery pass-through accepts up to 100W from a compatible USB-C power adapter (not included) and delivers up to 85W to the connected laptop.

Frequently Asked Questions

What's included in the box?
j5create JTSA301 Ergonomic Monitor Mount with Dock
USB-C 10Gbps host cable (1 m)
Installation tools and accessories
Quick Installation Guide

What warranty applies?
Warranty coverage according to the applicable terms and DokkanTech's Warranty Policy.

What monitor sizes are supported?
It supports one monitor from 17 to 32 inches, weighing up to 8 kg (17.6 lbs)

Does it support VESA mounting?
Yes. It supports 75 × 75 mm and 100 × 100 mm VESA standards

Does it include a docking station?

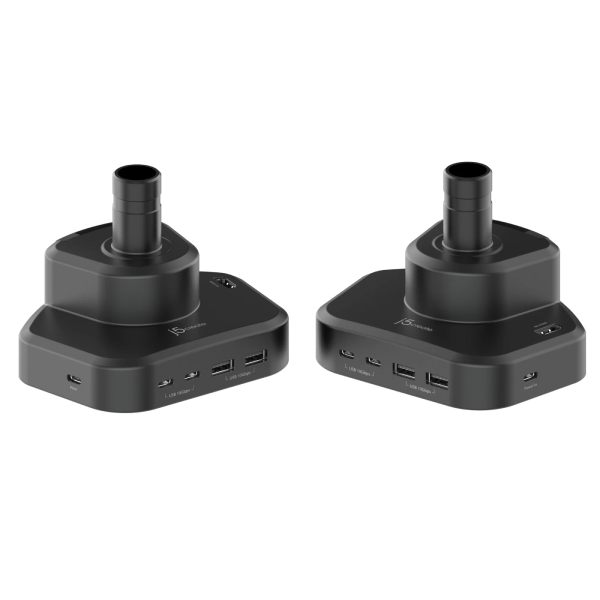

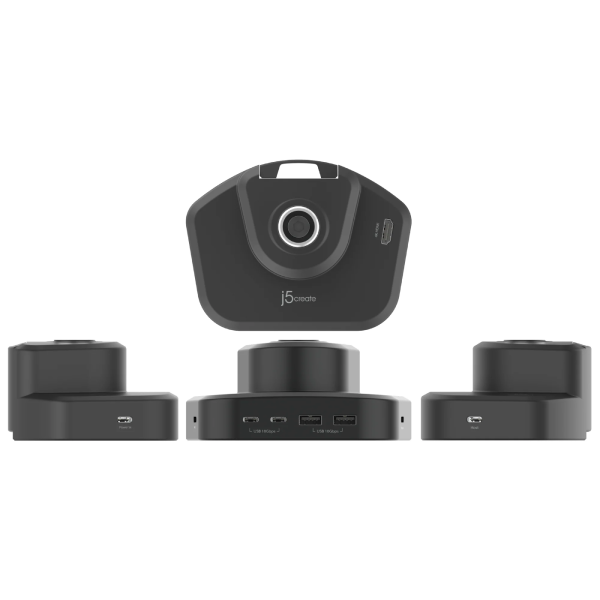

Yes. The monitor arm has a built-in 6-in-1 USB-C dock with 1 × HDMI, 2 × USB Type-A 10Gbps, 2 × USB-C 10Gbps, and up to 100W Power Delivery pass-through

Does it support 4K displays?
Yes. The HDMI output supports 4K (3840 × 2160) at 60Hz when the graphics card or video source supports DisplayPort™ 1.4

Does it have Ethernet or a card reader?
No. The dock does not include an Ethernet port, SD or microSD card readers, or a 3.5 mm audio jack; audio is carried over HDMI
